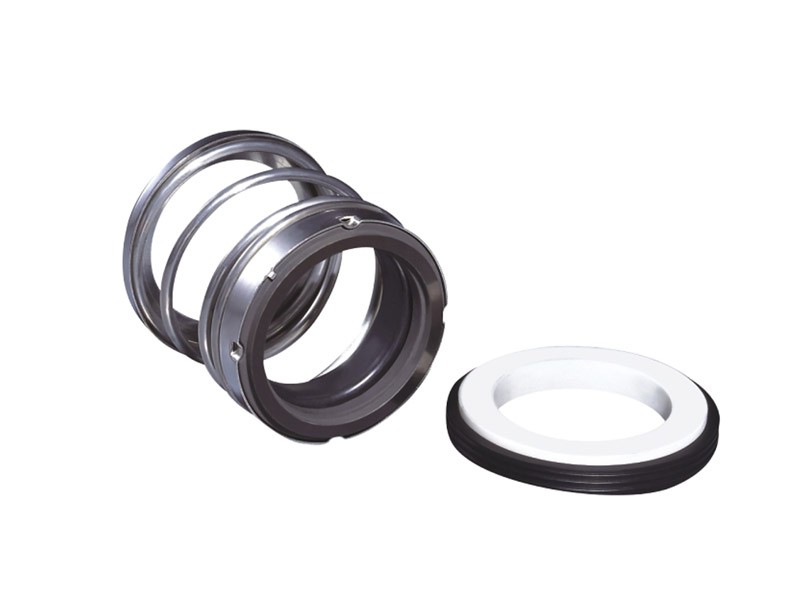

ZY560
適用范圍
溫度 :-40~150℃
壓力:≤0.8MPa
線速度 :≤10m/sec
材料
動環(石墨/碳化硅/碳化鎢
)靜環(陶瓷/碳化硅/碳化鎢)0
輔助密封(丁腈橡膠/氟橡膠/三元乙丙橡膠)
彈簧及其它零件(不銹鋼)
材質請根據實際工況選用
溫度 :-40~150℃
壓力:≤0.8MPa
線速度 :≤10m/sec
材料
動環(石墨/碳化硅/碳化鎢
)靜環(陶瓷/碳化硅/碳化鎢)0
輔助密封(丁腈橡膠/氟橡膠/三元乙丙橡膠)
彈簧及其它零件(不銹鋼)
材質請根據實際工況選用
- 描述
- 在線詢價
- 相關產品
描述
材料
動環(石墨/碳化硅/碳化鎢
)靜環(陶瓷/碳化硅/碳化鎢)0
輔助密封(丁腈橡膠/氟橡膠/三元乙丙橡膠)
彈簧及其它零件(不銹鋼)
材質請根據實際工況選用
適用范圍
溫度 :-40~150℃
壓力:≤0.8MPa
線速度 :≤10m/sec
介質
油類、水及其它弱腐蝕性溶液
用途
冷卻泵、離心泵、潛水泵和工業泵等設備
結構特點
結構緊湊、能自動補償軸的徑向和軸向跳動，浮動性好
有多種規格尺寸設計，適用范圍廣
| 型號 | D1 | D3 | D7 | L | L3 | L4 |
| ZY560A-8 | 8 | 17.5 | 21 | 18.9 | 13.9 | 5 |
| ZY560A-10 | 10 | 23.5 | 24 | 23.0 | 16.0 | 7 |
| ZY560A-11 | 11 | 23.5 | 24 | 23.0 | 16.0 | 7 |
| ZY560A-12 | 12 | 23.0 | 26 | 24.0 | 17.0 | 7 |
| ZY560A-13 | 13 | 23.0 | 26 | 24.0 | 17.0 | 7 |
| ZY560A-14 | 14 | 28.0 | 28 | 25.0 | 18.0 | 7 |
| ZY560A-15 | 15 | 28.0 | 28 | 25.0 | 18.0 | 7 |
| ZY560A-16 | 16 | 26.5 | 32 | 27.0 | 19.0 | 8 |
| ZY560A-18 | 18 | 30.0 | 35 | 26.0 | 18.0 | 8 |
| ZY560A-19 | 19 | 30.0 | 35 | 26.0 | 18.0 | 8 |
| ZY560A-20 | 20 | 32.0 | 38 | 28.0 | 20.0 | 8 |
| ZY560A-22 | 22 | 34.0 | 40 | 37.0 | 29.0 | 8 |
| ZY560A-25 | 25 | 40.0 | 44 | 29.0 | 20.0 | 9 |
| ZY560A-28 | 28 | 44.5 | 46 | 30.0 | 21.0 | 9 |
| ZY560A-30 | 30 | 46.0 | 50 | 31.0 | 22.0 | 9 |
| ZY560A-32 | 32 | 46.0 | 54 | 33.0 | 24.0 | 9 |
| ZY560A-35 | 35 | 54.5 | 58 | 36.0 | 26.0 | 10 |
| ZY560A-38 | 38 | 54.0 | 60 | 37.0 | 27.0 | 10 |
| ZY560A-40 | 40 | 58.0 | 64 | 38.0 | 28.0 | 10 |
| ZY560A-45 | 45 | 61.5 | 66 | 40.0 | 30.0 | 10 |
| ZY560A-50 | 50 | 71.0 | 72 | 42.0 | 32.0 | 10 |
| 型 號 | D1 | D3 | D7 | L | L3 | L4 |
| ZY 560B-3/8" | 9.53 | 22.2 | 28.5 | 22.2 | 6.3 | |
| ZY 560B-1/2" | 12.70 | 23.0 | 25.4 | 30.2 | 22.2 | 8.0 |
| ZY 560B-5/8" | 15.88 | 26.5 | 31.8 | 32.5 | 22.2 | 10.3 |
| ZY 560B-3/4" | 19.05 | 30.5 | 35.0 | 32.5 | 22.2 | 10.3 |
| ZY 560B-7/8" | 22.23 | 34.0 | 38.1 | 34.3 | 24.0 | 10.3 |
| ZY 560B-1" | 25.40 | 40.0 | 41.3 | 36.4 | 25.4 | 11.0 |
| ZY 560B-1 1/8" | 28.58 | 44.5 | 44.5 | 38.0 | 27.0 | 11.0 |
| ZY 560B-1 1/4" | 31.75 | 46.5 | 47.7 | 38.0 | 27.0 | 11.0 |
| ZY 560B-1 3/8" | 34.93 | 51.5 | 50.8 | 39.5 | 28.5 | 11.0 |
| ZY 560B-1 1/2" | 38.10 | 54.0 | 54.0 | 39.5 | 28.5 | 11.0 |
| ZY 560B-1 5/8" | 41.28 | 58.0 | 60.3 | 47.7 | 35.0 | 12.7 |
| ZY 560B-1 3/4" | 44.45 | 61.5 | 63.5 | 47.7 | 35.0 | 12.7 |
| ZY 560B-1 7/8" | 47.63 | 65.5 | 66.7 | 50.7 | 38.0 | 12.7 |
| ZY 560B-2" | 50.80 | 73.0 | 69.9 | 50.7 | 38.0 | 12.7 |
| ZY 560B-2 1/8" | 53.98 | 76.0 | 76.2 | 57.3 | 43.0 | 14.3 |
| ZY 560B-2 1/4" | 57.15 | 79.0 | 79.4 | 57.3 | 43.0 | 14.3 |
| ZY 560B-2 3/8" | 60.33 | 80.0 | 82.6 | 60.3 | 46.0 | 14.3 |
| ZY 560B-2 1/2" | 63.50 | 86.0 | 85.7 | 60.3 | 46.0 | 14.3 |
| ZY 560B-2 5/8" | 66.68 | 93.0 | 85.7 | 65.0 | 49.0 | 16.0 |
| ZY 560B-2 3/4" | 69.85 | 93.0 | 88.9 | 65.0 | 49.0 | 16.0 |
| ZY 560B-2 7/8" | 73.03 | 99.0 | 95.3 | 68.5 | 52.5 | 16.0 |
| ZY 560B-3" | 76.20 | 99.0 | 98.4 | 68.5 | 52.5 | 16.0 |
| 型 號 | D1 | D3 | D7 | L | L3 | L4 |
| ZY 560C-16 | 16 | 26.5 | 27 | 36.0 | 25.7 | 10.3 |
| ZY 560C-18 | 18 | 30.0 | 33 | 37.5 | 27.2 | 10.3 |
| ZY 560C-20 | 20 | 32.0 | 35 | 37.5 | 27.2 | 10.3 |
| ZY 560C-22 | 22 | 34.0 | 37 | 38.2 | 27.2 | 11.0 |
| ZY 560C-24 | 24 | 40.0 | 39 | 40.0 | 29.0 | 11.0 |
| ZY 560C-25 | 25 | 40.0 | 40 | 40.0 | 29.0 | 11.0 |
| ZY 560C-28 | 28 | 44.5 | 43 | 42.5 | 31.5 | 11.0 |
| ZY 560C-30 | 30 | 46.0 | 45 | 42.5 | 31.5 | 11.0 |
| ZY 560C-32 | 32 | 46.0 | 48 | 42.5 | 31.5 | 11.0 |
| ZY 560C-33 | 33 | 46.0 | 48 | 42.5 | 31.5 | 11.0 |
| ZY 560C-35 | 35 | 51.5 | 50 | 42.5 | 31.5 | 11.0 |
| ZY 560C-38 | 38 | 54.0 | 56 | 45.0 | 34.0 | 11.0 |
| ZY 560C-40 | 40 | 58.0 | 58 | 45.0 | 32.3 | 12.7 |
| ZY 560C-43 | 43 | 61.5 | 61 | 45.0 | 32.3 | 12.7 |
| ZY 560C-44 | 44 | 61.5 | 64 | 45.0 | 32.3 | 12.7 |
| ZY 560C-45 | 45 | 61.5 | 63 | 45.0 | 32.3 | 12.7 |
| ZY 560C-48 | 48 | 65.5 | 66 | 45.0 | 32.3 | 12.7 |
| ZY 560C-50 | 50 | 71.0 | 70 | 47.5 | 34.8 | 12.7 |
| ZY 560C-53 | 53 | 76.0 | 73 | 47.5 | 33.3 | 14.2 |
| ZY 560C-55 | 55 | 76.0 | 75 | 47.5 | 33.3 | 14.2 |
| ZY 560C-58 | 58 | 79.0 | 78 | 52.5 | 38.3 | 14.2 |
| ZY 560C-60 | 60 | 80.0 | 80 | 52.5 | 38.3 | 14.2 |
| ZY 560C-63 | 63 | 86.0 | 83 | 52.5 | 38.3 | 14.2 |
| ZY 560C-65 | 65 | 86.0 | 85 | 52.0 | 36.0 | 16.0 |
| ZY 560C-68 | 68 | 93.0 | 90 | 52.0 | 36.0 | 16.0 |
| ZY 560C-70 | 70 | 93.0 | 92 | 60.0 | 44.0 | 16.0 |
| ZY 560C-73 | 73 | 99.0 | 93 | 60.0 | 44.0 | 16.0 |
| ZY 560C-75 | 75 | 99.0 | 97 | 60.0 | 44.0 | 16.0 |

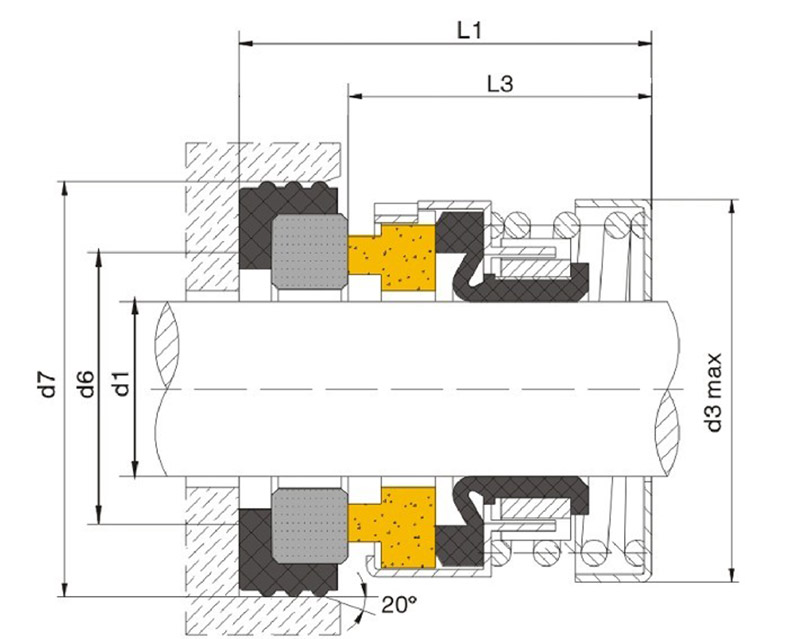

| 型號 | d1(mm) | d3 | d7 | L1 | L3 |
| ZY560A-10-04004 | 10 | 23.5 | 24 | 25.0 | 7.0 |
| ZY560A-11-04004 | 11 | 23.5 | 24 | 25.0 | 7.0 |
| ZY560A-12-04004 | 12 | 23.0 | 26 | 25.0 | 7.0 |
| ZY560A-14-04004 | 14 | 28.0 | 28 | 25.5 | 7.0 |
| ZY560A-15-04004 | 15 | 26.5 | 28 | 29.5 | 7.0 |
| ZY560A-16-04004 | 16 | 26.5 | 32 | 33.5 | 10.0 |
| ZY560A-17-04004 | 18 | 30.0 | 35 | 36.5 | 10.0 |
| ZY560A-18-04004 | 19 | 30.0 | 35 | 36.5 | 10.0 |
| ZY560A-20-04004 | 20 | 33.5 | 38 | 38.0 | 10.0 |
| ZY560A-22-04004 | 22 | 37.5 | 40 | 40.3 | 10.0 |
| ZY560A-25-04004 | 25 | 39.0 | 44 | 38.0 | 10.0 |
| ZY560A-28-04004 | 28 | 47.0 | 46 | 38.0 | 10.0 |
| ZY560A-30S-04004 | 30 | 46.0 | 45 | 38.2 | 7.5 |
| ZY560A-30L-04004 | 30 | 48.0 | 50 | 40.0 | 10.0 |
| ZY560A-32-04004 | 32 | 50.0 | 54 | 40.0 | 10.0 |
| ZY560A-35-04004 | 35 | 54.5 | 58 | 42.0 | 10.0 |
| ZY560A-38-04004 | 38 | 56.5 | 60 | 42.6 | 10.0 |
| ZY560A-40-04004 | 40 | 56.0 | 64 | 42.6 | 10.0 |
| ZY560A-45-04004 | 45 | 62.0 | 66 | 45.0 | 10.8 |
| ZY560A-50-04004 | 50 | 70.0 | 72 | 54.6 | 11.0 |
| ZY560A-55S-04004 | 55 | 72.0 | 75 | 59.4 | 12.0 |
| ZY560A-55L-04004 | 55 | 76.0 | 78 | 59.8 | 12.0 |
| ZY560A-60-04004 | 60 | 80.0 | 80 | 63.0 | 12.0 |
| ZY560A-65-04004 | 65 | 85.0 | 85 | 64.0 | 13.0 |
| ZY560A-70-04004 | 70 | 92.0 | 92 | 60.0 | 11.0 |
