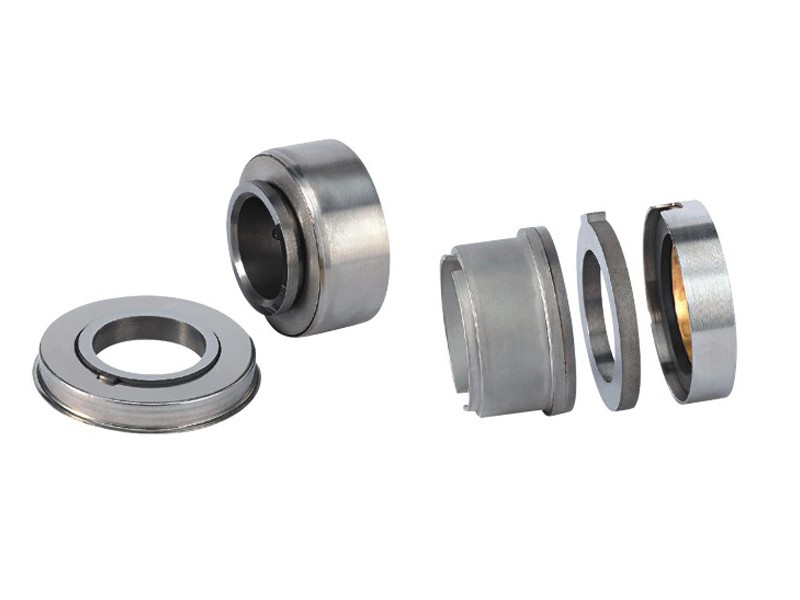

ZY XD
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Stationary Ring(SlC/TC)
Rotary Ring(SIC/TC)
O-Ring(NBR/EPDM/VITON)
Stationary Seat(NBR/SUS304)
Springt(SUS304/SUS316)
Rotary Seat(SUS304/SUS316)
Retainer(SUS304/SUS316)
Elastic Screw(SUS304/SUS316)
Drive Ring(SUS304/SUS316)
- Description
- Online Inquiry
- Related Products

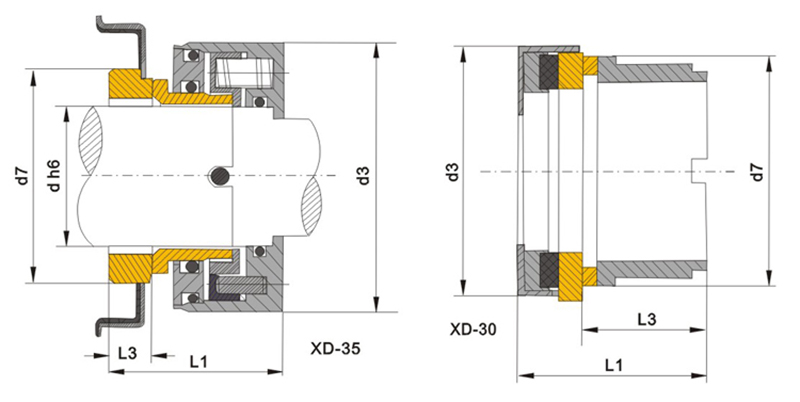

| Seal size d(mm/inch) |
d3 | d7 | L1 | L3 |
| 30 | 50 | 46.0 | 37.6 | 24.6 |
| 35 | 67 | 53.5 | 42.8 | 10.3 |
ZY XA
Design Features
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Stationary Ring(Ceramic/TC)
Rotary Ring(Carbon/Ceramic/TC)
Secondary Seal(NBR/VITON)
Spring Other Parts(65Mm/SUS304/SUS316 )
Other Parts(Plastic)
ZY XB
Design Features
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Rotary Ring(Carbon/Ceramic/TC)
Stationary Ring(Ceramic/TC)
Secondary Seal(NBR/VITON)
Spring Other Parts(65Mm/ SUS304/SUS316 )
Other Parts(Plastic)
ZY XC
Design Features
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Rotary Ring(Carbon/Ceramic/TC)
Stationary Ring(Ceramic/TC)
Secondary Seal(NBR/VITON)
Spring Other Parts(65Mm/ SUS304/SUS316 )
Other Parts(Plastic)
ZY XD
Design Features
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Stationary Ring(SlC/TC)
Rotary Ring(SIC/TC)
O-Ring(NBR/EPDM/VITON)
Stationary Seat(NBR/SUS304)
Springt(SUS304/SUS316)
Rotary Seat(SUS304/SUS316)
Retainer(SUS304/SUS316)
Elastic Screw(SUS304/SUS316)
Drive Ring(SUS304/SUS316)
