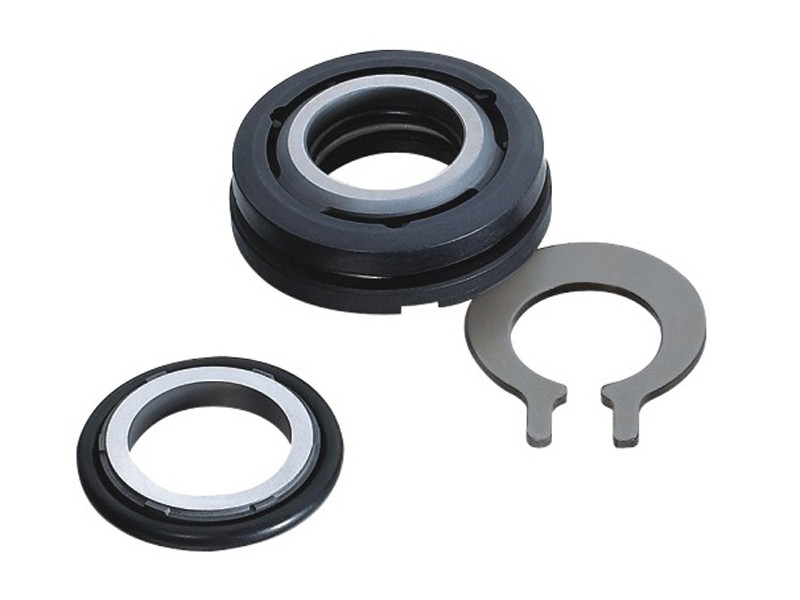

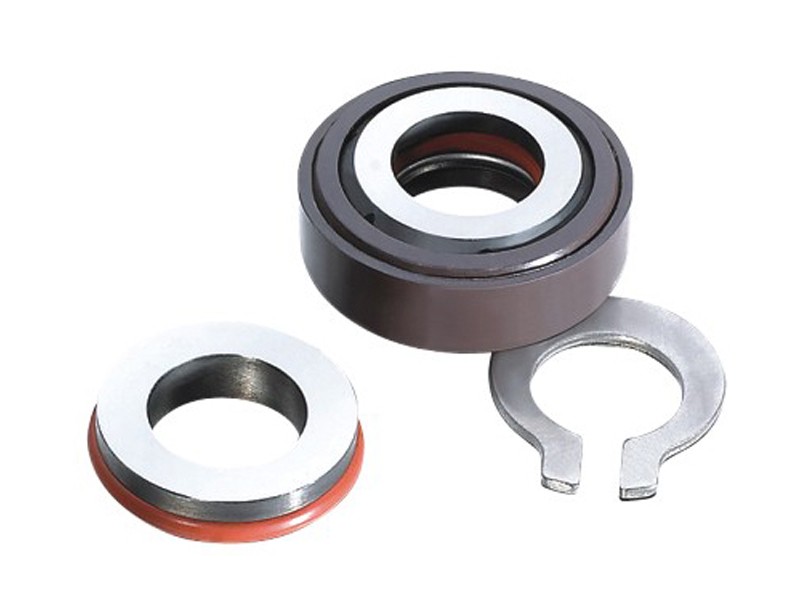

ZY XA
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Stationary Ring(Ceramic/TC)
Rotary Ring(Carbon/Ceramic/TC)
Secondary Seal(NBR/VITON)
Spring Other Parts(65Mm/SUS304/SUS316 )
Other Parts(Plastic)
- Description
- Online Inquiry
- Related Products

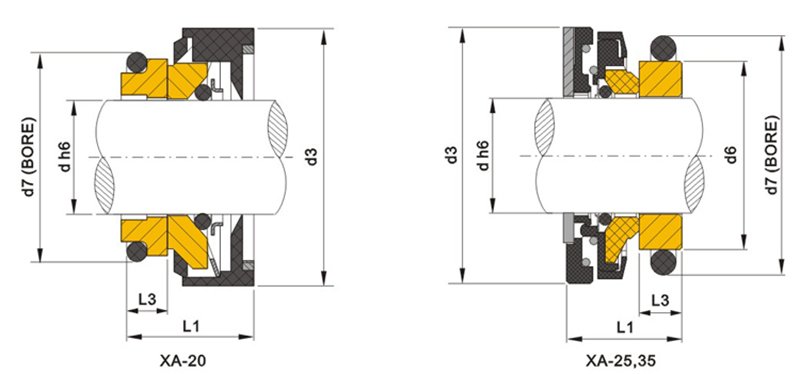

| Seal size d(mm/inch) |
d3 | d6 | d7 | L1 | L3 |
| 20 | 45.2 | - | 36 | 21.5 | 7.2 |
| 25 | 54.0 | 35.2 | 42 | 21.0 | 6.0 |
| 35 | 69.8 | 50.3 | 56 | 25.7 | 10.2 |
ZY XA
Design Features
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Stationary Ring(Ceramic/TC)
Rotary Ring(Carbon/Ceramic/TC)
Secondary Seal(NBR/VITON)
Spring Other Parts(65Mm/SUS304/SUS316 )
Other Parts(Plastic)
ZY XB
Design Features
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Rotary Ring(Carbon/Ceramic/TC)
Stationary Ring(Ceramic/TC)
Secondary Seal(NBR/VITON)
Spring Other Parts(65Mm/ SUS304/SUS316 )
Other Parts(Plastic)
ZY XC
Design Features
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Rotary Ring(Carbon/Ceramic/TC)
Stationary Ring(Ceramic/TC)
Secondary Seal(NBR/VITON)
Spring Other Parts(65Mm/ SUS304/SUS316 )
Other Parts(Plastic)
ZY XD
Design Features
Pressure: ≤1.2MPa
Speed: ≤10m/s
Temperature: -30℃~ +200℃
Materials
Stationary Ring(SlC/TC)
Rotary Ring(SIC/TC)
O-Ring(NBR/EPDM/VITON)
Stationary Seat(NBR/SUS304)
Springt(SUS304/SUS316)
Rotary Seat(SUS304/SUS316)
Retainer(SUS304/SUS316)
Elastic Screw(SUS304/SUS316)
Drive Ring(SUS304/SUS316)
