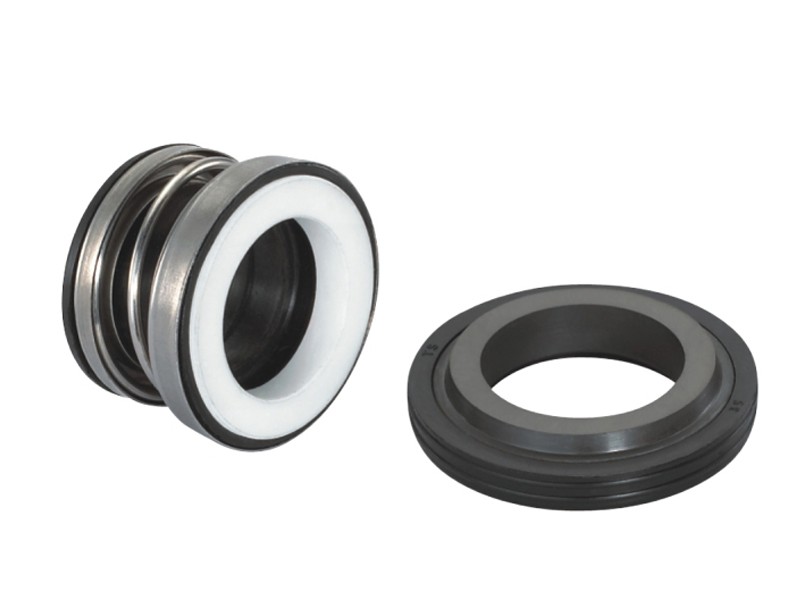

ZY 103
Temperature: -20~100°C
Pressure:≤0.7MPa
Speeds:≤5m/sec
Materials
Rotating Ring (Carbon/Garbon/Ceramic/SIC/TC)
Stationary Ring (Ceramic/Carbon/SIC/TC)
Auxiliary Seal (NBR/Viton/EPDM)
Spring & Other Parts (SUS304/SUS316/S.S)
- Description
- Online Inquiry
- Related Products

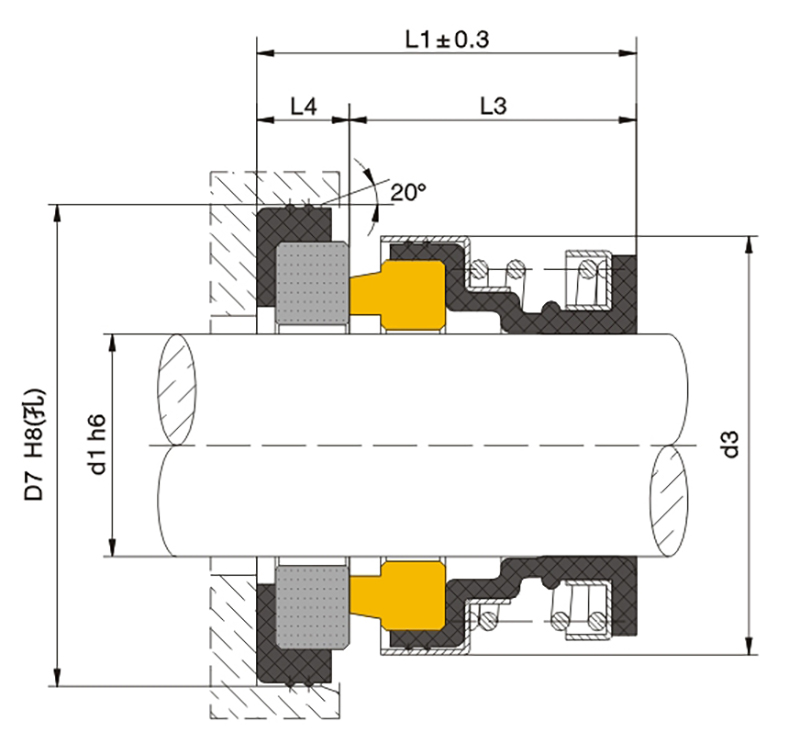

| MODEL | d1 | d3 | D7 | L1 | L3 | L4 |
| ZY 103-10 | 10 | 22.5 | 26 | 20.5 | 15.5 | 5 |
| ZY 103-12 | 12 | 22.5 | 26 | 20.5 | 15.5 | 5 |
| ZY 103-12H | 12 | 22.5 | 26 | 22.5 | 15.5 | 7 |
| ZY 103-14 | 14 | 28 | 30 | 20.5 | 15.5 | 5 |
| ZY 103-16 | 16 | 30 | 35 | 20.5 | 15.5 | 5 |
| ZY 103-17 | 17 | 30 | 35 | 20.5 | 15.5 | 5 |
| ZY 103-18 | 18 | 30 | 35 | 20.5 | 15.5 | 5 |
