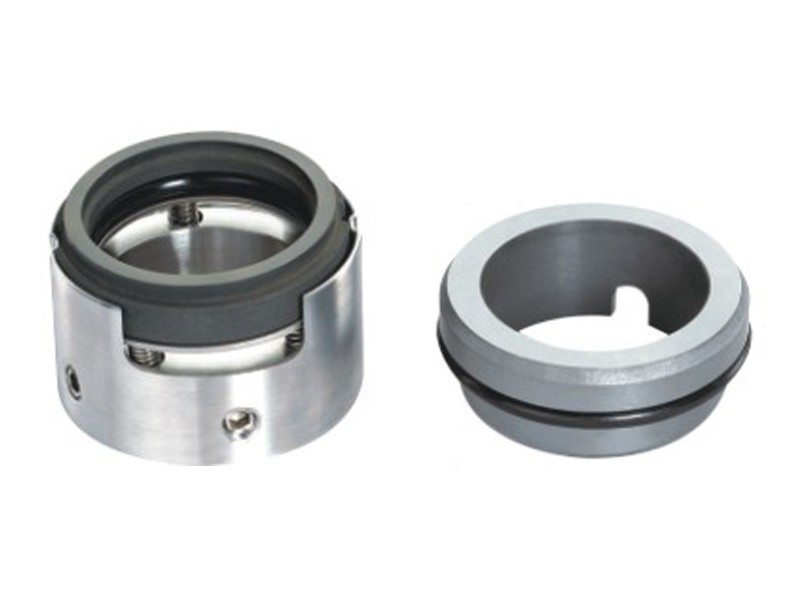

ZY M74
Límites de funcionamiento
Presión: ≤1,6 MPa
Velocidad: ≤20 m/s
Temperatura: -30 °C a +200 °C
Materiales
Anillo estacionario (carbono/silicio/carbono)
Anillo giratorio (silicio/carbono/carbono)
Sello secundario (VITON/PTFE + VITON)
Resorte y otras piezas (SUS304/SUS316)
Presión: ≤1,6 MPa
Velocidad: ≤20 m/s
Temperatura: -30 °C a +200 °C
Materiales
Anillo estacionario (carbono/silicio/carbono)
Anillo giratorio (silicio/carbono/carbono)
Sello secundario (VITON/PTFE + VITON)
Resorte y otras piezas (SUS304/SUS316)
- Descripción
- Consulta en línea
- Productos relacionados
Descripción

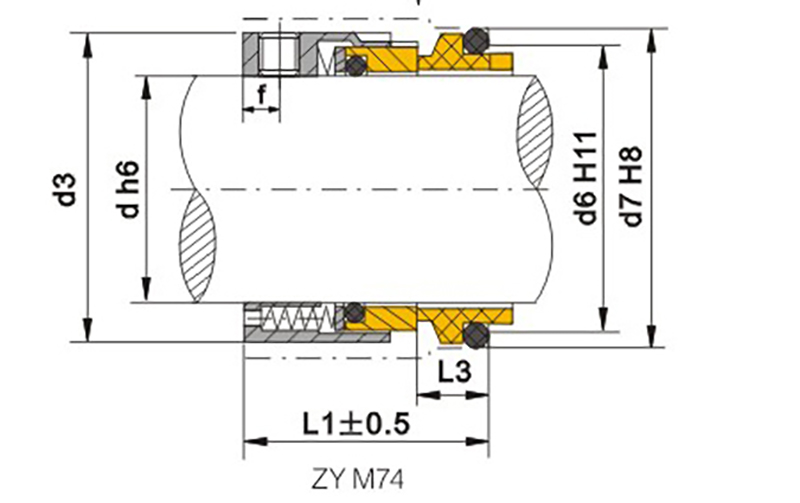

| Tamaño del sello d(mm) |
d3 | d6 | d7 | L1 | L3 | f |
| 14 | 25.0 | 21 | 25 | 35.0 | 10.0 | 6.0 |
| 16 | 27.0 | 23 | 27 | 35.0 | 10.0 | 6.0 |
| 18 | 33.0 | 27 | 33 | 37.5 | 11.5 | 7.0 |
| 20 | 35.0 | 29 | 35 | 37.5 | 11.5 | 7.0 |
| 22 | 37.0 | 31 | 37 | 37.5 | 11.5 | 7.0 |
| 24 | 39.0 | 33 | 39 | 40.0 | 11.5 | 8.0 |
| 25 | 40.0 | 34 | 40 | 40.0 | 11.5 | 8.0 |
| 28 | 43.0 | 37 | 43 | 42.5 | 11.5 | 8.0 |
| 30 | 45.0 | 39 | 45 | 42.5 | 11.5 | 8.0 |
| 32 | 47.0 | 42 | 48 | 42.5 | 11.5 | 8.0 |
| 33 | 48.0 | 42 | 48 | 42.5 | 11.5 | 8.0 |
| 35 | 50.0 | 44 | 50 | 42.5 | 11.5 | 8.0 |
| 38 | 55.0 | 49 | 56 | 45.0 | 14.0 | 8.0 |
| 40 | 57.0 | 51 | 58 | 45.0 | 14.0 | 8.0 |
| 43 | 60.0 | 54 | 61 | 45.0 | 14.0 | 8.0 |
| 45 | 62.0 | 56 | 63 | 45.0 | 14.0 | 8.0 |
| 48 | 65.0 | 59 | 66 | 45.0 | 14.0 | 8.0 |
| 50 | 67.0 | 62 | 70 | 47.5 | 15.0 | 8.0 |
| 53 | 70.0 | 65 | 73 | 47.5 | 15.0 | 8.0 |
| 55 | 72.0 | 67 | 75 | 47.5 | 15.0 | 8.0 |
| 58 | 79.0 | 70 | 78 | 52.5 | 15.0 | 9.0 |
| 60 | 81.0 | 72 | 80 | 52.5 | 15.0 | 9.0 |
| 63 | 84.0 | 75 | 83 | 52.5 | 15.0 | 9.0 |
| 65 | 86.0 | 77 | 85 | 52.5 | 15.0 | 9.0 |
| 68 | 89.0 | 81 | 90 | 52.5 | 18.0 | 9.0 |
| 70 | 91.0 | 83 | 92 | 60.0 | 18.0 | 9.0 |
| 75 | 99.0 | 88 | 97 | 60.0 | 18.0 | 10.0 |
| 80 | 104.0 | 95 | 105 | 60.0 | 18.2 | 10.0 |
| 85 | 109.0 | 100 | 110 | 60.0 | 18.2 | 10.0 |
| 90 | 114.0 | 105 | 115 | 65.0 | 18.2 | 10.0 |
| 95 | 119.0 | 110 | 120 | 65.0 | 17.2 | 10.0 |
| 100 | 124.0 | 115 | 125 | 65.0 | 17.2 | 10.0 |
